Coal Slime Rotary Dryer

High-Efficiency Coal Slime Dryer for Sticky & Filter Cake Materials

  • Product Specification:φ1.2X12- φ5.0X50
  • Product Output:2 - 60 TPH
  • Application Fields:coal, mining industry,cement industry, metallurgical industry,construction materials industry,nonferrous industry, chemical industry,port industry,etc.
20+ Years
Manufacturing Experience
150+ Countries
Exported & Installed Worldwide
EPC Turnkey
Design, Manufacturing & Commissioning
24/7 Support
On-Site Engineer Dispatch

Overview & Applicable Raw Materials

The coal slime dryer by Henan Hongke Machinery is a specialized drying machine developed on the basis of existing rotary dryers to handle sticky filter cake materials that ordinary rotary dryers struggle with. Equipped with a deagglomeration mechanism, movable grate-type flights, cleaning device, and crushing/impact dispersing unit, it is engineered for viscous filter cake drying.

Applicable Sticky & Filter Cake Materials:

Coal slime, sludge, choline chloride, red mud, biological waste residue, and other sticky filter cake materials requiring drying.

Product Structure

The coal slime dryer consists of the main body, support roller assembly, thrust/support roller assembly, sealing device, and drive unit. Depending on site conditions, it can be paired with combustion chambers using different fuels such as coal, heavy oil, coal gas, or mine gas.

Structural diagram of Coal Slime Rotary Dryer

Key Performance Advantages of Henan Hongke Coal Slime Rotary Dryer

1. Large Throughput (2–60 t/h)

High handling capacity suited to single-unit production lines ranging from 2 to 60 t/h.

2. Low Operating Cost & High Heat Transfer

Volumetric heat transfer coefficient reaches 300–450 kcal/m³·°C·h, supporting economical running costs.

3. Stepless Speed & Inlet Temp Control

Drum rotation speed is steplessly adjustable; tuning drum speed and dryer inlet air temperature adapts to varying feed properties and moisture targets.

4. Reliable Running & Overload Resistance

Self-aligning support rollers reduce wear and power loss, while dedicated thrust rollers reduce horizontal thrust caused by inclined operation.

5. Anti-Sticking Internal Structure

New internal structure enhances cleaning and heat conduction on dispersed material, reducing inner wall sticking and improving adaptability to moisture and viscosity.

6. Controllable Particle Size & Moisture

Adjusts product moisture and size to user needs; when drying coal slime, moisture can reach below 8% and particle size can be controlled under 8 mm.

Working Principle & Workflow

Material enters the dryer through the feeding device. Because the drum rotates slowly in an inclined position, material moves axially from the higher end toward the lower end while lifting flights continuously lift, scatter, and move the material circumferentially—enabling thorough heat exchange with air until dried below the required moisture level, then discharging through the outlet device.

Process Flow & Working Principle Diagram

Technical Specifications & Internal Structure

*Note: Reference models are listed below. As Henan Hongke Heavy Machinery Co., Ltd. continuously updates and improves its products, parameters and designs may be updated without prior notice.

Spec (m)Inner Dia. (mm)Length (mm)Inclination (°)Speed (rpm)Capacity (t/h)Power (kW)Action
φ1.2X121200120001.852–511Get Price
φ1.5X151500150001.84.284–518.5Get Price
φ1.8X181800180001.856–822Get Price
φ2.0X2020002000023.387–1030Get Price
φ2.2X222200220001.82.89–1445Get Price
φ2.4X242400240002.52.8214–1655Get Price
φ2.8X282800280002.52.5520–2290Get Price
φ3.0X303000300002.52.6922–24132Get Price
φ3.2X323200320002.52.624–26200Get Price
φ3.6X363600360002.52.5130–40315Get Price
φ4.0X404000400002.52.0940–45400Get Price
φ4.2X424200420002.52.0945–46400Get Price
φ4.5X454500450002.51.9246–50500Get Price
φ4.8X484800480002.51.9250–55630Get Price
φ5.0X505000500002.51.9255–60710Get Price

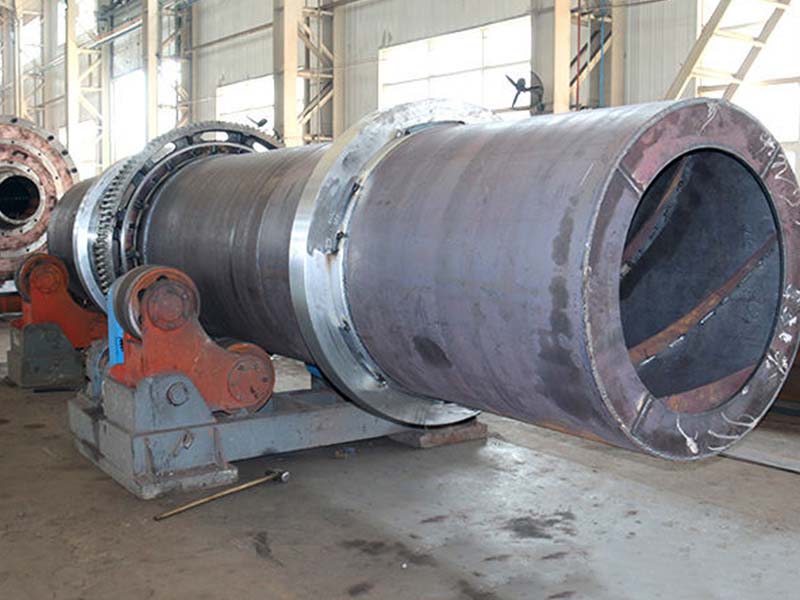

Internal Structure & Global Factory Delivery

Built with rigorous quality control at Henan Hongke Heavy Machinery Co., Ltd., every internal component—from the driving gear and riding rings to the sealing system—is crafted from superior alloy steel for longevity.

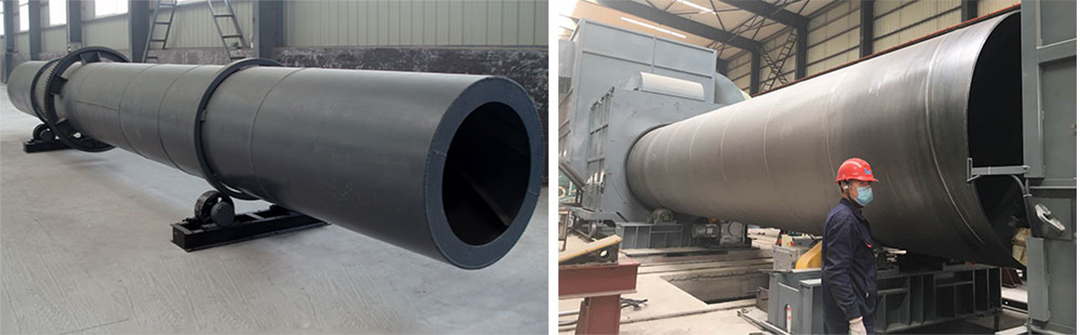

Global Factory Delivery

Detailed View of Core Components & Internal Craftsmanship

Factory-Direct Pricing & High Cost-Effectiveness

Equipment pricing is always a primary concern for plant investors,as it is heavily influenced by model scale,raw material specs,and manufacturing configuration. While standard market options often compromise on quality or carry excessive middleman markups,Henan Hongke Machinery utilizes advanced manufacturing technologies to optimize production costs. We provide factory-direct pricing with exceptional reliability,giving global clients maximum return on investment.

Why Choose Henan Hongke Rotary Kiln?

⚙️

±2°C Precision Control

Advanced automated multi-point thermal monitoring prevents over-burning or under-calcination.

📉

20% Lower Fuel Cost

Optimized internal flight lifters and heavy-duty spring seals drastically reduce thermal loss.

🌍

Global EPC Turnkey

Full-process support from 3D plant design and manufacturing to overseas site installation.

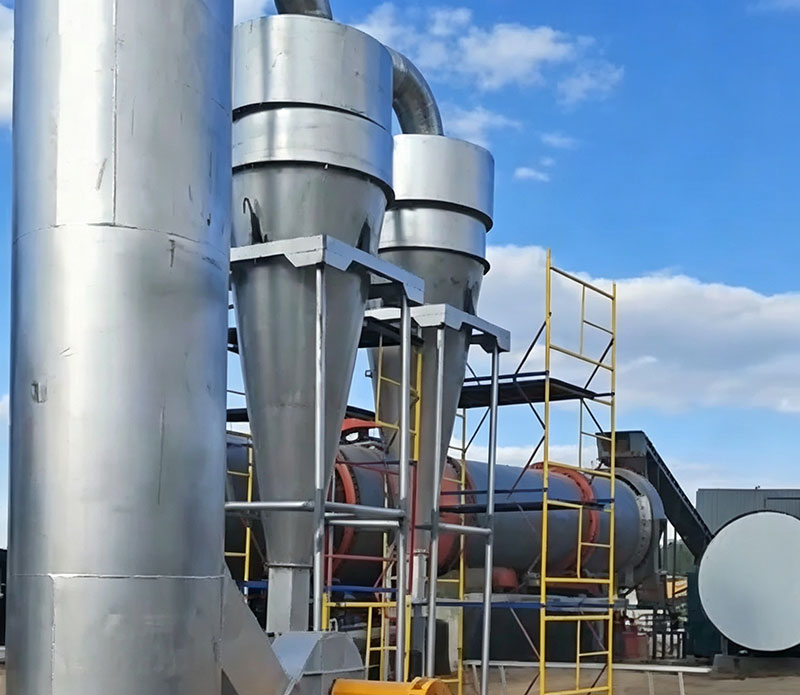

Rotary Dryer Project Cases
