"Is your current jaw crusher breaking down too often or eating through jaw plates every 3 months?"

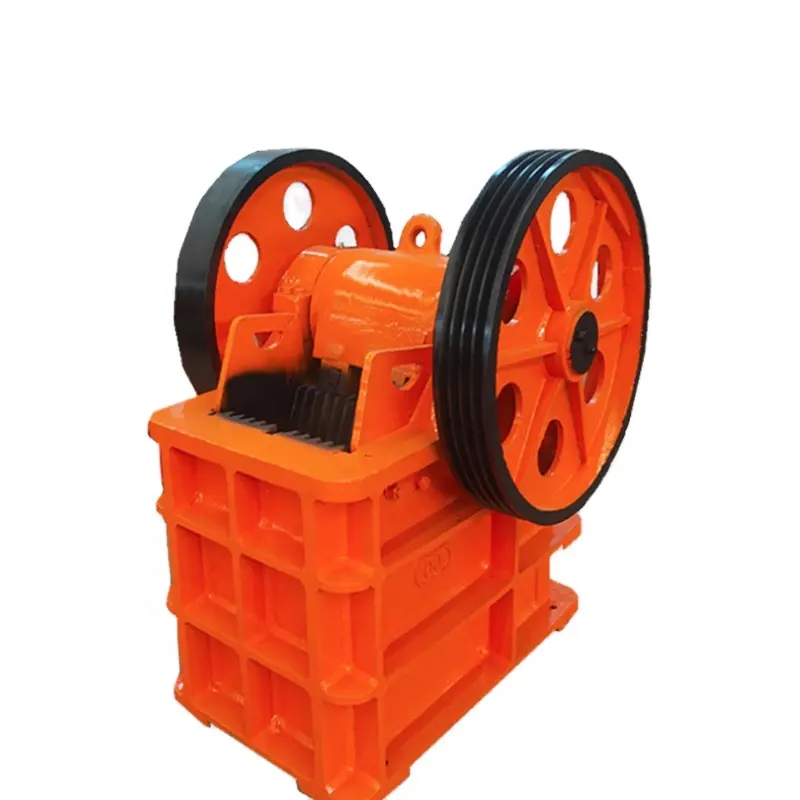

Our Heavy-Duty Jaw Crusher is built for 24/7 mining & quarry operations. It delivers aggressive crushing (up to 320 MPa compressive strength) with 50% longer jaw plate life and quick toggle plate replacement – no more days of lost production.
✅ Cast steel moving jaw | ✅ SKF/NSK bearings | ✅ Hydraulic adjustment system | ✅ Ready stock in 5 global warehouses
Performance Advantages
✦ High Crushing Efficiency & No Blocking
Optimized deep crushing cavity increases feeding capacity and crushing ratio. Effective solving material clogging problems that cause production stop, ensuring continuous high output.
✦ Low Energy Consumption & Cost-Effective
Optimized transmission structure reduces invalid power loss. This energy-saving jaw crusher greatly lowers long-term electricity cost and improves profit margin.
✦ Super Wear Resistance & Longer Service Life
Adopts high-manganese steel jaw plates and thickened cast steel frame. Core wearing parts own stronger impact resistance, reducing replacement frequency and spare parts cost.
✦ Stable Performance & Low Failure Rate
Simple and reasonable mechanical structure avoids complex fault points. It can run stably under long-term heavy-load working conditions and minimize downtime loss.
✦ Easy Operation & Simple Maintenance
Humanized adjustable discharge opening design. Fast inspection and quick parts replacement, no need for professional skilled workers, lowering labor cost.
✦ Wide Application & Custom Support
Suitable for mining, quarry, road construction, concrete crushing and waste recycling. Multiple models available to match different production line scales.
Working Principle
"How does a jaw crusher turn big rocks into small, uniform aggregates?"
⚙️ V-Shaped Crushing Chamber: The fixed jaw (stationary) and moving jaw (swinging) form a V-shape – wide at the top, narrow at the bottom.
⚙️Eccentric Shaft + Toggle Plate: The motor drives the eccentric shaft, making the moving jaw swing back and forth like an elbow.
⚙️Crushing Action:
⚙️ Discharge: Material keeps falling and getting crushed until it's small enough to exit through the adjustable discharge opening.
⚙️Simple analogy: Like your mouth chewing food – the upper jaw is fixed, the lower jaw moves up and down to crush food into smaller pieces.
| MODEL | MAX FEEDING
SIZE (MM) | DISCHARGE
OPENING (MM) | CAPACITY
(T/H) | MOTOR POWER
(KW) | TOTAL WEIGHT
(T) | DIMENSIONS
(L×W×H) MM |
|---|
| PE-150×250 | 125 | 10-40 | 1-3 | 5.5 | 0.8 | 720×660×850 |
| PE-200×300 | 180 | 15-50 | 2-6 | 7.5 | 1.2 | 910×750×990 |
| PE-200×350 | 180 | 18-70 | 3-10 | 11 | 1.5 | 1000×870×990 |
| PE-250×400 | 210 | 20-60 | 5-21 | 15 | 2.8 | 1300×1090×1270 |
| PE-400×600 | 340 | 40-100 | 16-64 | 30 | 7 | 1730×1730×1630 |
| PE-500×750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980×2080×1870 |
| PE-600×750 | 500 | 150-200 | 80-240 | 55 | 15.8 | 2070×2000×1920 |
| PE-600×900 | 500 | 65-160 | 50-160 | 55 | 17 | 2190×2206×2300 |
| PE-750×1060 | 630 | 80-140 | 110-320 | 110 | 29 | 2660×2430×2800 |
| PE-800×1060 | 640 | 130-190 | 130-330 | 110 | 29.8 | 2710×2430×2800 |
| PE-830×1060 | 650 | 160-220 | 150-336 | 110 | 30.7 | 2740×2430×2800 |
| PE-870×1060 | 660 | 200-260 | 190-336 | 110 | 31.5 | 2810×2430×2800 |
| PE-900×1060 | 685 | 230-290 | 230-390 | 110 | 33 | 2870×2420×2940 |
| PE-900×1200 | 750 | 95-165 | 220-380 | 110 | 52 | 3380×2870×3330 |
| PE-1000×1200 | 850 | 195-265 | 315-500 | 110 | 55 | 3480×2876×3330 |
| PE-1200×1500 | 1020 | 150-350 | 400-800 | 160-220 | 100.9 | 4200×3300×3500 |
| PE-1500×1800 | 1200 | 220-350 | 500-1000 | 280-355 | 139 | 5160×3660×4248 |
| ???? PEX Series – Secondary/Fine Jaw Crusher |
| PEX-150×750 | 120 | 18-48 | 8-25 | 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 210 | 25-60 | 13-35 | 22 | 5.5 | 1380×1750×1540 |
| PEX-250×1000 | 210 | 25-60 | 16-52 | 30 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 210 | 25-60 | 20-61 | 37 | 9.7 | 2140×1660×1500 |
| PEX-300×1300 | 250 | 20-90 | 16-105 | 55 | 15.6 | 2720×1950×1600 |
⚙️ Note:Capacity data based on medium-hard rock (bulk density 1.6t/m³). Actual output may vary with feed gradation, moisture & operation conditions.⚙️ Customizable discharge & motor power availableFor tailored solution →Contact engineering support

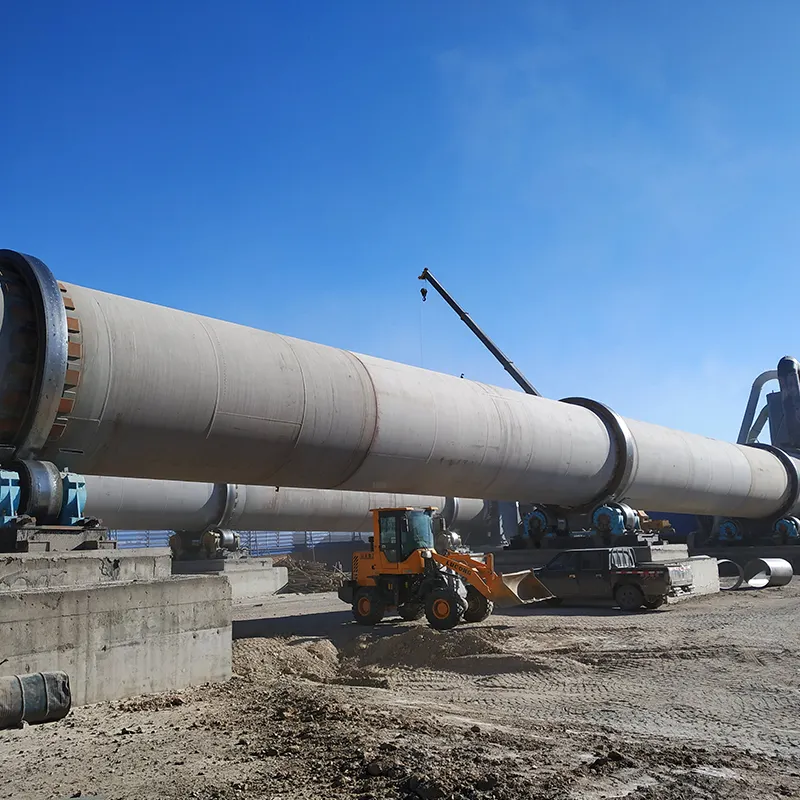

Rotary Kiln
