Aluminum Oxide Rotary Kiln

High-Efficiency Alumina Rotary Kiln for Calcined Alumina Production

  • Product Specification:Φ 2.5×40 - Φ 6.0×95
  • Product Output:180 - 1000 (T / d)
  • Application Fields:Alumina production, aluminum smelting, refractory manufacturing, ceramics and electronic materials processing
20+ Years
Manufacturing Experience
150+ Countries
Exported & Installed Worldwide
EPC Turnkey
Design, Manufacturing & Commissioning
24/7 Support
On-Site Engineer Dispatch

Overview & Applicable Raw Materials

The alumina rotary kiln manufactured by Henan Hongke Machinery is core calcination equipment designed for 950°C–1700°C material calcination in Bayer process, soda-lime sintering process, and Bayer-sintering combined alumina production—completing required dehydration, crystal phase transformation, and pyrolysis. It converts alumina raw materials (such as bauxite, kaolin, and aluminum hydroxide) into qualified calcined alumina and directly shapes product quality, throughput, and line efficiency.

Matched seamlessly with preheaters, coolers, ball mills, vibrating feeders, and dust collectors, our alumina rotary kiln forms a complete automatic alumina calcination line exported across Russia, Central Asia, Southeast Asia, the Middle East, and Africa.

  • Applicable Raw Materials: Bauxite, aluminum hydroxide, kaolin, alunite, and alumina-bearing feedstocks.
  • Downstream Industries: Aluminum smelting, refractory materials, technical ceramics, electronic materials, and chemical fillers.
  • Process Compatibility: Bayer process, soda-lime sintering process, and Bayer-sintering combination process.

Product Structure

A rotary kiln mainly consists of a refractory-lined steel shell,supporting and thrust rollers,a drive system,end seals,and a burner. Mounted at a slight incline,the rotating shell moves material continuously from the feed end to the discharge end for high-temperature processing.

Structural diagram of Aluminum Oxide Rotary Kiln

Key Performance Advantages of Henan Hongke Aluminum Oxide Rotary Kiln

1. High Calcination & Thermal Efficiency

Advanced combustion system and thermal insulation achieve thermal efficiency of 85% or higher, lowering fuel use, shortening calcination cycles, and maintaining uniform temperature for consistent particle size.

2. Energy Saving & Environmental Compliance

Intelligent temperature control and waste heat recovery reduce energy consumption by 15%–20% versus traditional kilns, while tight kiln sealing minimizes dust leakage and exhaust emissions.

3. Stable Operation & 15+ Year Service Life

High-temperature resistant steel shell, quality refractory lining, and optimized drive and support wheel assemblies handle continuous high-temperature, high-load duty with low failure rates and 15+ years service life.

4. Flexible Customization for Plant Scale

Kiln diameters from 2.5 m to 6.0 m and adjustable lengths are tailored to your raw material traits, capacity targets, and plant site conditions.

5. High Calcined Alumina Purity

Designed so fuel does not contaminate the material bed directly, limiting sulfur transfer from fuel into the product and preserving high calcined alumina purity.

6. Easy Operation & Fast Commissioning

Intuitive monitoring and straightforward system controls make operator training simple and help plants reach stable commissioning in a short timeframe.

Working Principle & Workflow

Henan Hongke Heavy Machinery Co., Ltd. supplies both standalone alumina rotary kilns and complete calcination lines—covering engineering design, manufacturing, installation, commissioning, operator training, and after-sales maintenance:

  • Core Calcining Unit: Inclined rotary kiln shell with riding rings, support rollers, thrust rollers, girth gear drive, kiln head/tail seals, and multi-fuel burner system.
  • Preheating & Cooling Matching: Shaft cyclone preheaters or precalciner systems paired with rotary/grate coolers for rapid heat recovery.
  • Feeding, Grinding & Dust Control: Vibrating feeders, ball mills, conveyors, and high-efficiency dust collectors for clean, continuous plant operation.

Process Flow & Working Principle Diagram

Technical Specifications & Internal Structure

*Note: Standard specifications are listed below. Henan Hongke Heavy Machinery Co.,Ltd. offers customized dimensions and configurations based on your specific plant scale.

Model Spec (m)Diameter (m)Length (m)Inclination (%)Capacity (t/d)Speed (r/min)Motor Power (kW)Action
Φ2.5×402.5403.51800.44-2.4455Inquire
Φ2.5×502.55032000.62-1.8655Inquire
Φ2.5×542.5543.52040.45-1.4555Inquire
Φ2.7×422.7423.53200.10-1.5255Inquire
Φ2.8×442.8443.54000.437-2.1855Inquire
Φ3.0×453.0453.55000.5-2.4775Inquire
Φ3.0×483.0483.57000.6-3.48100Inquire
Φ3.0×603.0603.53000.3-2100Inquire
Φ3.2×503.250410000.6-3125Inquire
Φ3.5×543.5543.515000.55-3.4220Inquire
Φ4.0×604.0603.525000.396-3.96315Inquire
Φ4.8×744.874450000.396-3.96630Inquire
Φ6.0×956.095410000Max 5950×2Inquire

Internal Structure & Global Factory Delivery

Built with rigorous quality control at Henan Hongke Heavy Machinery Co., Ltd., every internal component—from the driving gear and riding rings to the sealing system—is crafted from superior alloy steel for longevity.

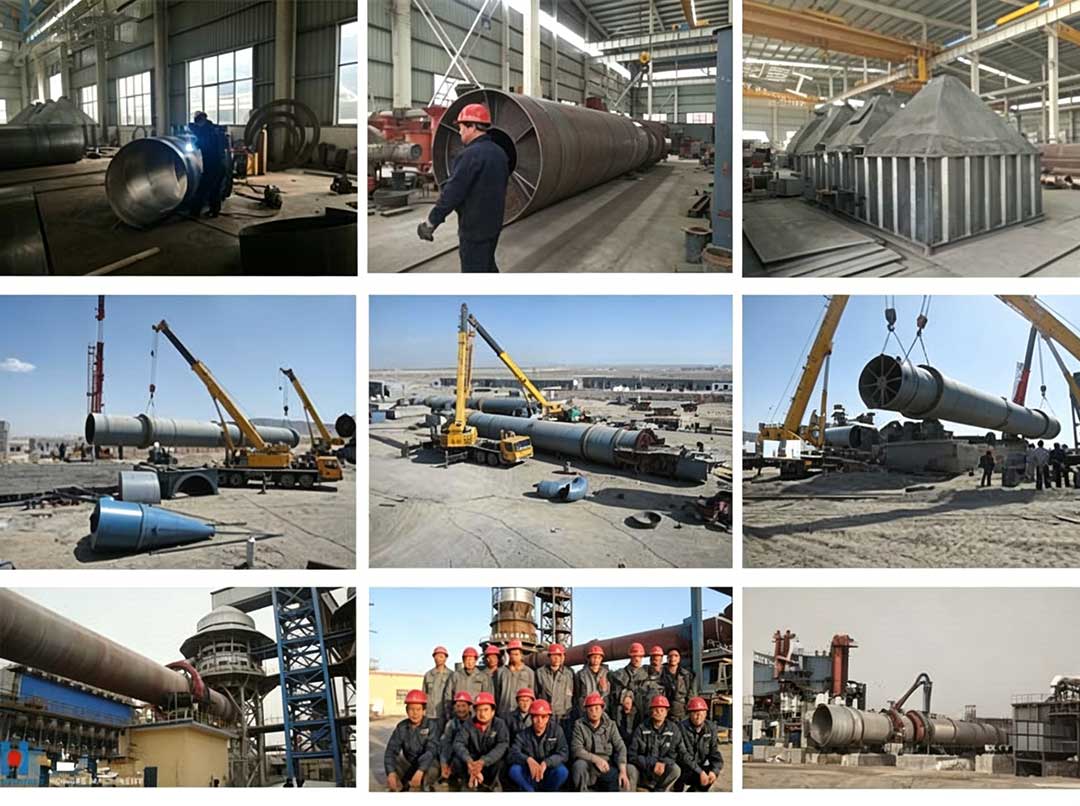

cases and shipping

Detailed View of Core Components & Internal Craftsmanship

Factory-Direct Pricing & High Cost-Effectiveness

Equipment pricing is always a primary concern for plant investors,as it is heavily influenced by model scale,raw material specs,and manufacturing configuration. While standard market options often compromise on quality or carry excessive middleman markups,Henan Hongke Machinery utilizes advanced manufacturing technologies to optimize production costs. We provide factory-direct pricing with exceptional reliability,giving global clients maximum return on investment.

Why Choose Henan Hongke Rotary Kiln?

⚙️

±2°C Precision Control

Advanced automated multi-point thermal monitoring prevents over-burning or under-calcination.

📉

20% Lower Fuel Cost

Optimized internal flight lifters and heavy-duty spring seals drastically reduce thermal loss.

🌍

Global EPC Turnkey

Full-process support from 3D plant design and manufacturing to overseas site installation.

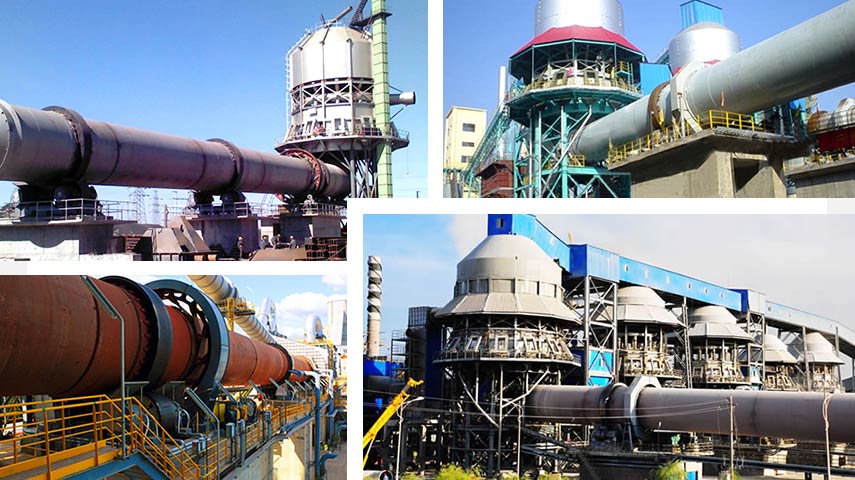

Rotary Kiln Project Cases
