Chicken Manure Dryer

Overview of Chicken Manure Dryer

A chicken manure dryer is an industrial drying machine designed to reduce the moisture content of chicken manure for easier handling, storage, transportation, and further processing. Drying conditions and equipment selection depend on the initial moisture content, material characteristics, required final moisture content, processing capacity, and available heat source.

Henan Hongke Heavy Machinery Co., Ltd. provides drying equipment solutions for industrial material processing. For chicken manure drying applications, a rotary drum dryer can be configured according to the material properties and operating requirements of the project.

Compared with handling high-moisture manure directly, properly dried material may be easier to store, convey, and use in subsequent fertilizer processing. The actual drying result depends on the incoming material, operating conditions, and selected equipment configuration.

Working Principle of Chicken Manure Dryer

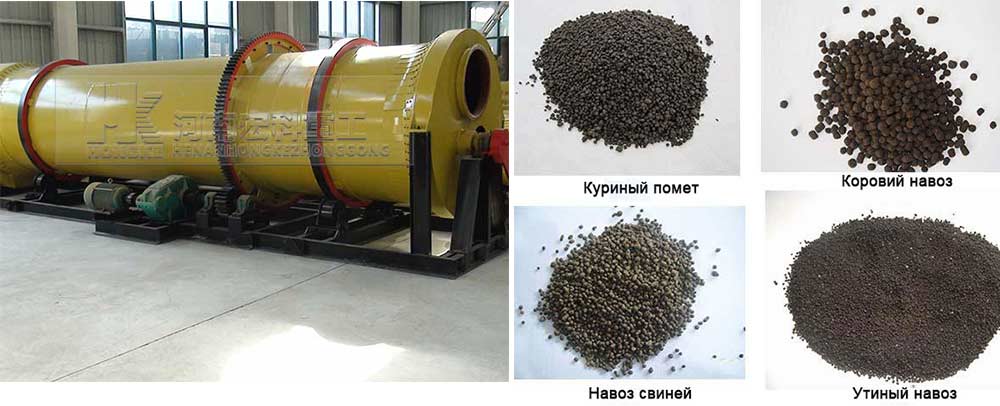

A rotary drum chicken manure dryer uses a rotating cylindrical drum to move and mix the material while heat is transferred to remove moisture. The specific arrangement of the feeding system, drum, heat source, and exhaust system depends on the equipment design.

1. Material Feeding

Fresh chicken manure is fed into the dryer through a suitable feeding device. The feeding arrangement should accommodate the material's moisture content, consistency, and handling characteristics to support stable operation.

2. Rotary Drum Drying

As the drum rotates, internal lifting flights or other material-distribution structures, where fitted, help move and disperse the manure through the drying chamber. Heat transfer promotes moisture evaporation as the material travels through the drum.

3. Moisture Removal

Moisture evaporates during drying and is carried away with the exhaust gas. The drying temperature, airflow, residence time, and feed rate should be selected according to the material and required final moisture content.

4. Dried Material Discharge

The dried chicken manure is discharged from the dryer for collection or further processing. The discharge moisture content should be verified under representative operating conditions.

5. Exhaust Gas and Dust Handling

Depending on the dryer design and local environmental requirements, an exhaust system and suitable dust collection or gas treatment equipment may be required. The treatment arrangement should be determined by the process conditions, exhaust characteristics, and applicable regulations.

Main Components of Chicken Manure Dryer

The main machine and its auxiliary components should be selected according to the required drying performance and site conditions. A typical rotary drum dryer configuration may include:

• Rotary Drum: Provides the main drying chamber for material movement and heat transfer.
• Drum Support and Drive System: Supports drum rotation and transmission of driving force.
• Feeding Device: Transfers chicken manure into the drying chamber at a suitable feed rate.
• Internal Lifting Flights: Where included in the design, help distribute and lift material during drum rotation.
• Heating System: Supplies the heat required for moisture evaporation. The heat source depends on project conditions and equipment design.
• Discharge Device: Transfers dried material out of the machine.
• Exhaust System: Removes moisture-laden gas from the drying process.
• Dust Collection Equipment: Can be configured where required to manage dust in the exhaust stream.
• Control and Monitoring System: Supports monitoring and adjustment of relevant operating parameters according to the selected configuration.

The items above describe a possible equipment configuration rather than a standard package for every project. The actual supply scope should be confirmed in the technical proposal.

Key Features of Chicken Manure Dryer

Designed for High-Moisture Materials

Chicken manure drying requires consideration of incoming moisture, material consistency, and the risk of sticking or uneven material distribution. The feeding arrangement and drying conditions should be selected to suit the actual material.

Adjustable Drying Conditions

Drying performance is affected by material feed rate, inlet moisture, heat input, airflow, and residence time. Operating conditions should be adjusted according to the required output and verified material moisture content.

Customized Equipment Configuration

Drum dimensions, drive configuration, heating arrangements, feeding equipment, and auxiliary systems can be evaluated according to the processing capacity, material characteristics, available energy source, and site layout.

Suitable for Further Material Processing

Dried chicken manure may be used as a feedstock for subsequent organic fertilizer processing or other approved applications, subject to product quality, local regulations, and the requirements of the intended use.

Optional Exhaust and Dust Treatment

Suitable exhaust handling and dust collection options can be evaluated according to the process design. Odor control and other exhaust treatment requirements should be assessed separately where necessary.

Integration with Existing Equipment

The dryer can be evaluated for use with suitable feeding, conveying, storage, and downstream processing equipment. The scope of any auxiliary equipment should be confirmed according to the customer's existing facilities and project requirements.

Technical Specifications of Chicken Manure Dryer

The following table outlines the main parameters used for equipment selection. Actual specifications depend on the selected model, material conditions, and project requirements.

Important: Processing capacity should be defined using a clear basis, such as wet feed input per hour or dried product output per hour. The two values are not interchangeable. Final equipment selection should consider both the moisture removed and the required operating conditions.

Applications of Chicken Manure Dryer

A chicken manure dryer can be used where moisture reduction is required before storage, transportation, or further material processing. Typical applications include:

• Organic Fertilizer Processing: Drying chicken manure before suitable downstream fertilizer processing.
• Manure Resource Utilization: Reducing moisture to facilitate material handling and storage.
• Bulk Material Handling: Preparing manure for conveying, storage, or transportation where a lower moisture content is required.
• Existing Fertilizer Facilities: Serving as a drying unit within a facility that processes poultry manure or other suitable organic materials.

The suitability of dried chicken manure for a particular application depends on its composition, moisture content, hygiene requirements, and applicable local standards. Drying alone should not be assumed to guarantee pathogen elimination or product certification.

How to Select a Suitable Chicken Manure Dryer

Selecting a suitable chicken manure dryer requires more than comparing equipment dimensions or nominal capacity. The following information helps establish the appropriate drying configuration:

• Processing Capacity: Required wet feed input per hour or per day, including the expected operating schedule.
• Initial Moisture Content: The moisture content of the chicken manure entering the dryer.
• Target Final Moisture Content: The required moisture level at the dryer outlet.
• Material Characteristics: Consistency, particle size, bedding content, and other relevant properties.
• Heat Source: Available fuel or energy supply and related operating requirements.
• Site Conditions: Installation space, utilities, material handling arrangements, and environmental requirements.
• Exhaust Treatment: Requirements for moisture-laden gas, dust, odor, and other relevant emissions.
• Downstream Application: Whether the dried material will be stored, transported, or further processed into fertilizer or another product.

Providing the initial and target moisture contents together with the required feed rate allows the drying duty to be evaluated more accurately. Where material properties vary significantly, representative material testing is recommended before final equipment selection.

About Henan Hongke Heavy Machinery Co., Ltd.

Henan Hongke Heavy Machinery Co., Ltd. focuses on one-stop solutions for mining machinery and industrial processing equipment. Its main product range includes rotary kilns, rotary dryers, ball mills, crushers, and related production line equipment.

For chicken manure drying applications, Henan Hongke Machinery can evaluate the customer's material characteristics, moisture reduction requirements, processing capacity, heat source, and installation conditions to help determine a suitable equipment configuration.

Successful case

Frequently Asked Questions

What is a chicken manure dryer used for?

A chicken manure dryer reduces the moisture content of chicken manure to facilitate handling, storage, transportation, or further processing. The suitable final moisture content depends on the intended use of the dried material.

Can a rotary drum dryer process fresh chicken manure?

A rotary drum dryer may be suitable for chicken manure, but the equipment configuration depends on the material's moisture content, consistency, feeding characteristics, and required drying performance. Material evaluation is recommended before selecting a model.

What determines the capacity of a chicken manure dryer?

Capacity depends on the amount of moisture that must be removed, initial and target moisture contents, heat input, airflow, residence time, material characteristics, and operating conditions. Wet feed capacity and dried product output should be specified separately.

What heat source can be used?

The available heat source depends on the dryer design, project energy supply, fuel availability, operating cost, and environmental requirements. The appropriate option should be confirmed during technical evaluation.

Does drying chicken manure eliminate odors and pathogens?

Drying can change the moisture content of chicken manure, but odor reduction and pathogen control depend on the actual treatment conditions and the overall process. These outcomes should not be guaranteed without suitable process validation and testing.

Can the chicken manure dryer be customized?

Equipment dimensions, processing capacity, heating arrangements, feeding and discharge systems, and auxiliary equipment can be evaluated according to the material and project requirements. The final configuration is subject to technical assessment.

What information is needed for a quotation?

Please provide the required processing capacity, initial moisture content, target final moisture content, material characteristics, available heat source, project location, and any special environmental or downstream processing requirements. These details help establish the basis for equipment selection and quotation.

Request a Chicken Manure Dryer Proposal

Looking for a suitable chicken manure drying solution? Contact Henan Hongke Heavy Machinery Co., Ltd. with your material information, processing capacity, moisture reduction target, and heat source requirements. Our team can evaluate your project details and help identify a suitable dryer configuration.
