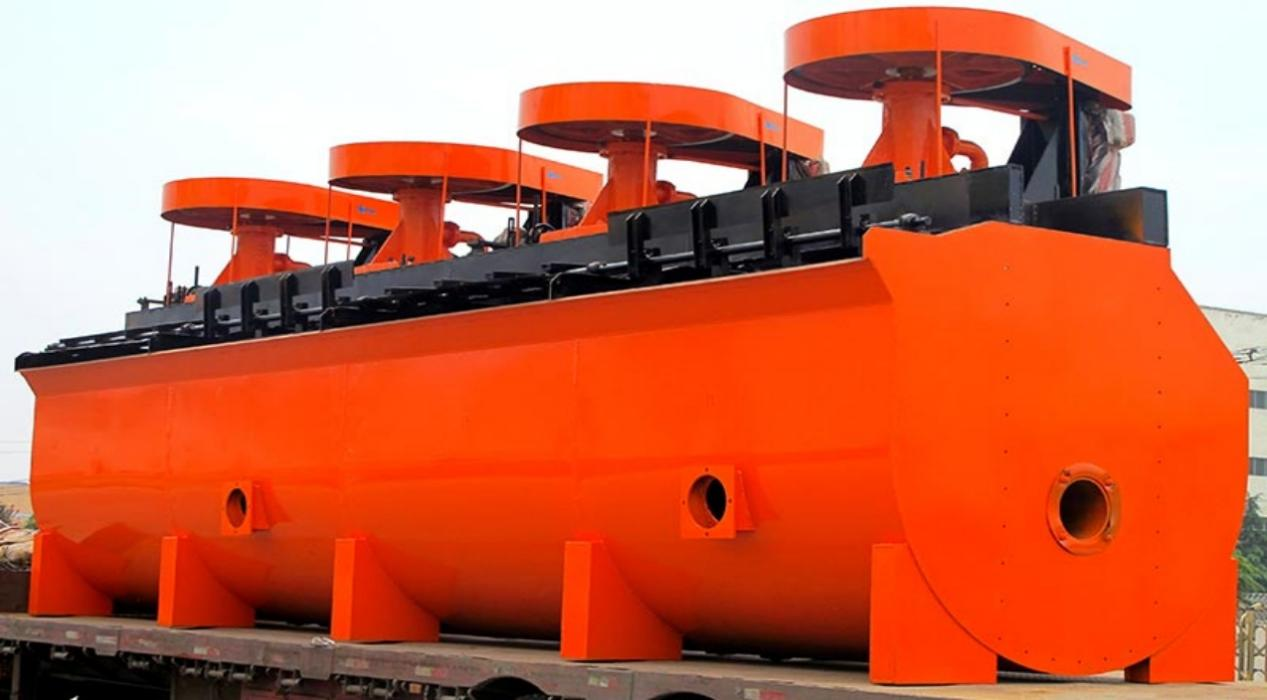

XJK Flotation Machine

During operation, pulp flows through the feed pipe to the center of the cover plate. The rotating impeller generates centrifugal force to throw pulp outward, forming negative pressure between the impeller and cover plate. Ambient air is automatically sucked in via the air intake pipe. Under intense stirring of the impeller, pulp and air mix fully, and air is split into tiny bubbles. Extra bubbles are also separated out from pulp behind impeller blades. Mineralized bubbles rise to the froth zone and are scraped out by scraper blades to obtain froth concentrate.

Product Advantages

1. ✅ Low Operating CostIt saves 1/3 to 1/2 power consumption compared with ordinary mechanically agitated flotation machines.
2. ✅ High Separation Precision, Low Ash Content in ConcentrateConcentrate ash can be reduced by 1~2% versus conventional stirring flotation equipment.
3. ✅ Excellent Flotation PerformanceEquipped with automatic liquid level control and electric control systems; highly refined froth greatly boosts separation efficiency.
4. ✅ Durable Wear PartsThe rotating impeller continuously clears sediment and debris inside the tank, lowering component damage caused by impurities. Impellers of the stirring assembly are made of wear-resistant rubber for extended service life.

Basic Overall Parameters

• Capacity: 0.18–7 m³/min
• Effective Volume: 0.35–5.8 m³
• Model Range: XJK-0.35 ~ XJK-5.8

• Applicable Material: Ore Pulp

•


• Technical Parameter Table


• Model Description	XJK-0.35 (3A)	XJK-0.62 (4A)	XJK-1.1 (5A)	XJK-2.8 (6A)	XJK-5.8 (7A)
  Effective Volume (m³)	0.35	0.62	1.1	2.8	5.8
  Processing Capacity (m³/min)	0.18～0.4	0.3～0.9	0.6～1.6	1.5～3.5	3～7
  Rotation Speed (r/min)	470	400	330	280	240
  Impeller Diameter (mm)	300	350	500	600	750
  Matching Motor – Impeller Motor Model	Y90L-4	Y100L2-4	Y132M2-6	Y160L-6	Y200L2-6 (Y225M-6)
  Matching Motor – Scraper Motor Model	Y90S-4	Y90S-4	Y90S-4	Y90S-4	Y90L-4
  Motor Power – Impeller Motor (kw)	1.5	3	5.5	11	22 (30)
  Motor Power – Scraper Motor (kw)	1.1	1.1	1.1	1.1	1.5
  Single Tank Weight (t)	0.43	0.86	1.38	2.33	3.533
