Henan Hongke Heavy Machinery Co., Ltd. is proud to share the success of a recently completed Φ 2.5×45m catalyst rotary kiln project at a customer site in Shizuishan, Ningxia Hui Autonomous Region, China. This project demonstrates our commitment to delivering specialized calcination solutions for the chemical catalyst industry.
Project Background: A Growing Need for High-Quality Catalyst Processing
Our customer in Shizuishan is a well-established chemical manufacturer specializing in catalyst production for the petrochemical and environmental protection industries. The region has become an important industrial center in western China, with growing demand for high-performance catalysts from local and national markets.
The customer was operating with older batch-type calcination equipment that could not consistently deliver the product quality or throughput they needed. They approached Henan Hongke Heavy Machinery with clear objectives: a modern, continuous calcination system that would produce consistent, high-purity catalyst material with precise process control.
Why This Customer Chose Henan Hongke Machinery
After evaluating multiple suppliers, the customer selected Henan Hongke Heavy Machinery for several compelling reasons:
1. Specialized Catalyst Calcination Expertise
Catalyst calcination requires indirect heating technology to prevent contamination—a design feature that many general-purpose kiln suppliers cannot offer. Henan Hongke Machinery has extensive experience in designing indirect-fired rotary kilns specifically for catalyst processing. We understand that catalysts are sensitive materials; any contact with combustion gases can ruin their performance. Our indirect-fired design heats the kiln shell externally through a furnace shroud, so the catalyst never touches the flame or flue gas.
2. Custom-Engineered for Their Specific Requirements
We don't sell off-the-shelf equipment. Every system is engineered to match the customer's material characteristics and production targets. For this project, our technical team worked closely with the customer to understand their catalyst formulation, target throughput, and site conditions before finalizing the kiln design.
3. Precision Temperature Control
Catalyst calcination demands tight temperature control—typically within ±5°C—to achieve the desired surface area, pore structure, and active phase distribution. Our multi-zone heating system allows independent control of each zone along the kiln length, ensuring a precise temperature profile tailored to the customer's specific calcination requirements.
4. Inert Atmosphere Capability
Many catalyst grades require processing under nitrogen or other controlled gases to prevent unwanted oxidation or reduction reactions. Our sealing system maintains atmosphere integrity throughout operation, protecting sensitive materials during the calcination process.
5. Brand-New, Purpose-Built Equipment
The customer was clear: no refurbished units, no repurposed cement kilns. They wanted a brand-new system engineered specifically for catalyst calcination. We delivered exactly that—a complete production line built from the ground up.
What We Supplied

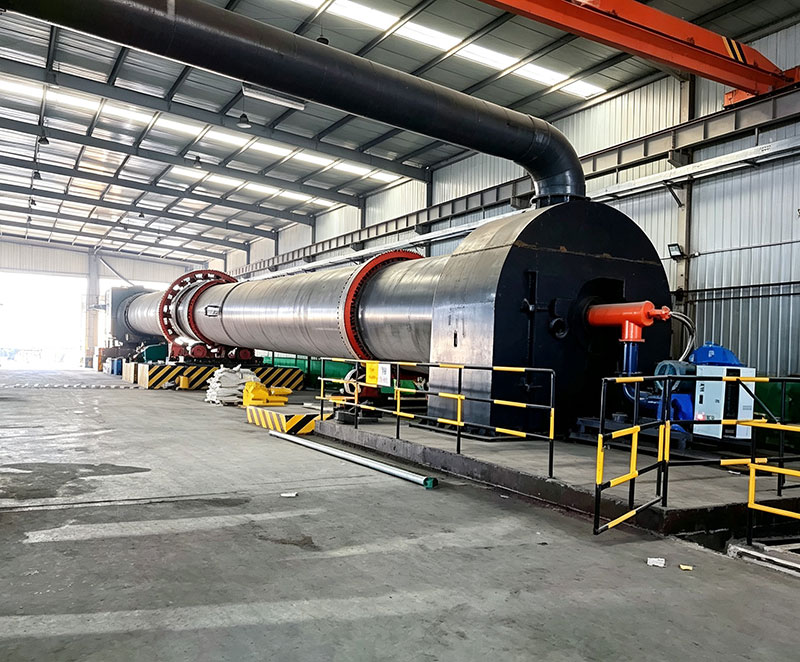

A complete catalyst calcination line built around a Φ 2.5×45m indirect-fired rotary kiln.
| Key Feature | Specification |
|---|---|
| Kiln size | 2.5 m diameter × 45 m length |
| Heating method | Indirect external heating (gas-fired furnace shroud) |
| Temperature range | 400–1,000°C (zoned control) |
| Temperature accuracy | ±5°C |
| Atmosphere | Air, nitrogen, or reducing gas – fully controllable |
| Kiln inclination | 3–4% |
| Drive system | Heavy-duty gear drive with variable frequency control |
The system includes:
Precision screw feeder for consistent material feed
Multi-zone heating furnace with independent zone control
Inert gas sealing system
Product cooling section for direct packaging
Multi-stage dust collection
PLC-based automation with full data logging
How the Catalyst Calcination Process Works
The calcination process in this indirect-fired rotary kiln serves multiple critical purposes:
| Process Stage | What Happens | Why It Matters |
|---|---|---|
| Heating | Material enters the kiln and is gradually heated in the first zone | Prepares material for chemical changes without thermal shock |
| Removal of impurities | Bound water and organic residues are driven off | Prevents catalyst poisoning; ensures purity |
| Crystal formation | Active components transform to the required crystal phase | Determines catalyst activity and selectivity |
| Surface development | Pore structure and surface area are finalized | Affects how well the catalyst contacts reactants |
The material's residence time in the kiln is controlled by adjusting rotation speed and kiln inclination. This flexibility allows the customer to fine-tune product characteristics for different catalyst grades.
Trial Run Results – Performance Confirmed
The trial run was a complete success. The system performed exactly as designed:
Temperature stability achieved – All heating zones reached and maintained setpoint temperatures within ±5°C, ensuring consistent product properties batch after batch.
Inert atmosphere maintained – The sealing system held the required gas environment throughout operation, protecting sensitive catalyst materials.
Product quality verified – Initial test batches met all customer specifications for surface area, pore structure, and mechanical strength.
Continuous operation – The system ran smoothly with automated monitoring and minimal operator intervention.
What This Means for Our Customer
The successful commissioning of this catalyst rotary kiln delivers measurable benefits:
| Benefit | Value |
|---|---|
| Consistent catalyst quality | Uniform activity, surface area, and mechanical strength – fewer rejects |
| Product purity | Indirect heating prevents contamination from combustion gases |
| Process flexibility | Multi-zone temperature control supports different catalyst grades |
| Full traceability | Data logs for quality certification and customer reporting |
| Lower operating costs | Efficient heating design reduces fuel consumption |
| 24/7 reliability | Built for continuous operation with minimal downtime |
| Reduced labor requirements | Automation minimizes manual intervention |
About Henan Hongke Heavy Machinery Co., Ltd.
Henan Hongke Heavy Machinery Co., Ltd. (Henan Hongke Machinery) has been designing and manufacturing industrial processing equipment since 2006. Our product portfolio includes:
Rotary Kilns – for catalysts, lime, dolomite, zinc oxide, and mineral calcination
Rotary Dryers – for sludge, biomass, and industrial materials
Ball Mills – for ore, slag, cement, and chemical grinding
Crushers – for primary and secondary size reduction
We serve customers across China and international markets, with a focus on practical solutions, on-time delivery, and reliable after-sales support. From initial engineering to installation guidance and commissioning, we stay with our customers every step of the way.
Building Long-Term Partnerships
At Henan Hongke Heavy Machinery, we believe that a successful project is the beginning of a long-term relationship. Our commitment to our Shizuishan customer extends beyond delivery:
Technical support – We provide ongoing advice on process optimization and troubleshooting
Spare parts availability – Critical components are stocked for quick delivery
Maintenance guidance – Our team helps develop preventive maintenance schedules
Future upgrades – We can support capacity expansion or process changes as their business grows
