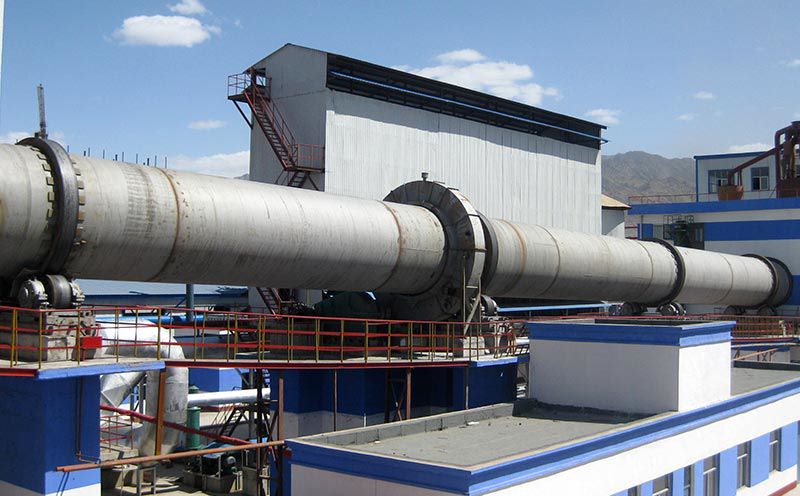

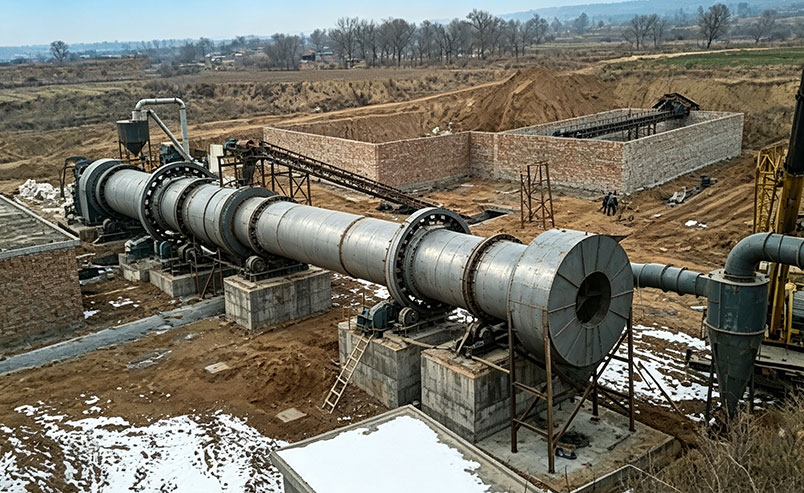

Coal Gangue Rotary Kiln

The coal gangue rotary kiln is a high‑temperature thermal processing equipment specifically designed for the calcination and activation of coal gangue – one of the largest industrial solid wastes generated during coal mining and washing. This kiln system transforms low‑value, high‑carbon gangue into high‑grade calcined kaolin (also known as metakaolin or anhydrous kaolin), a white, chemically stable mineral widely used in ceramics, papermaking, rubber, plastics, paints, and refractory materials.

Our coal gangue rotary kiln adopts a robust, horizontally inclined cylindrical shell that rotates continuously. It integrates advanced feeding, calcination, cooling, and exhaust gas treatment systems, enabling large‑scale, energy‑efficient, and environment‑friendly processing. With a daily capacity ranging from 50 to 1,000 tonnes, Hongke’s rotary kiln is the core equipment for building a complete coal‑gangue‑to‑kaolin valorisation plant.

2. Working Principle

The coal gangue rotary kiln operates on the principle of direct‑fired, counter‑current heat exchange. The entire process can be divided into four sequential stages:

(1) Raw Material Preparation (Upstream Integration)

Pre‑crushed and ground coal gangue (fineness: 200‑mesh, moisture: <8%) is homogenised in a storage silo. For wet‑process lines, the ground gangue is mixed with water and dispersants to form a slurry, then classified to remove iron, titanium, and quartz impurities before dewatering and pre‑drying.

(2) Kiln Feeding and Pre‑heating

The prepared material enters the kiln inlet (feed end) via a screw feeder or belt conveyor. As the kiln rotates at a speed of 0.2‑1.2 rpm, the material slowly moves toward the discharge end due to the kiln’s inclination (typically 3‑4%). In the pre‑heating zone (temperature: 200‑600°C), residual moisture and volatile organic components are driven off.

(3) High‑Temperature Calcination (Key Stage)

As material advances into the high‑temperature zone (1,050‑1,150°C), the following physico‑chemical transformations take place:

• Dehydroxylation: Kaolinite (Al₂O₃·2SiO₂·2H₂O) loses its structural hydroxyl groups, breaking the layered crystal lattice.

• Amorphisation: The structure collapses into amorphous metakaolin, which then recrystallises into spinel and primary mullite phases.

• Carbon Burnout: Residual carbon and organic matter are completely oxidised, significantly raising the whiteness (ISO brightness from <40% to >88%).

• Desulphurisation: Sulphur compounds are decomposed and carried away with flue gases.

The heat required is generated by a multi‑channel burner installed at the discharge end, firing pulverised coal, natural gas, heavy oil, or even waste‑derived fuels. The hot combustion gases flow counter‑current to the material, ensuring efficient heat transfer.

(4) Cooling and Discharge

The calcined product, at ~1,000°C, exits the kiln and enters a horizontal grate cooler or rotary cooler, where it is rapidly quenched to below 100°C by forced air. This rapid cooling locks in the reactive meta‑stable phases and improves the product’s grinding performance. The cooled product is then conveyed to finished product silos for packaging or further processing.

3. Performance Features

Hongke’s coal gangue rotary kiln is engineered with the following distinctive advantages:

✅ High Thermal Efficiency

• Advanced heat‑recovery system: hot air from the cooler is recycled as secondary combustion air, reducing fuel consumption by 8‑12%.

• Optimised refractory lining with low thermal conductivity minimises shell radiation losses.

• Variable‑frequency drive allows precise control of material residence time, preventing over‑ or under‑calcination.

✅ Excellent Product Quality

• Uniform temperature distribution along the kiln axis ensures consistent whiteness (88‑92% ISO) and Al₂O₃ activation (>44%).

• Automatic temperature and pressure monitoring (PLC/SCADA) maintains strict process stability.

• Produced calcined kaolin meets international standards for paper coating, ceramic bodies, and functional fillers.

✅ Robust Mechanical Design

• Kiln shell made of Q245R/Q345R boiler steel plate, with automatic welding and 100% ultrasonic flaw detection.

• Heavy‑duty support rollers and thrust rollers with self‑aligning spherical roller bearings ensure smooth rotation and long service life.

• High‑alumina brick lining (working layer ≥150 mm) with a service life exceeding 4‑5 years under normal operation.

• Spring‑loaded graphite block sealing at both ends effectively reduces air infiltration (O₂ < 2%) and dust leakage.

✅ Environmentally Compliant

• Closed‑circuit water system for slurrying achieves >95% water recycling.

• Integrated baghouse or electrostatic precipitator keeps stack dust emission <20 mg/Nm³.

• Desulphurisation and denitrification options are available to meet strict local environmental regulations (e.g., China’s GB 16297‑1996).

✅ Flexible Fuel Adaptability

• Burner can be switched between pulverised coal, natural gas, diesel, or refuse‑derived fuels (RDF), offering operational cost flexibility based on local energy prices.

✅ Low Maintenance & High Uptime

• Centralised lubrication system for all bearings and gears.

• Quick‑change refractory repair kits and spare parts are readily available from Hongke’s global warehouses.

• Designed for >330 operating days per year (excluding scheduled shutdowns).

4. Technical Parameters (Typical Models)

Below are the standard specifications for Hongke’s coal gangue rotary kiln series. Customised designs are available upon request.

Notes:

• Capacity refers to dry coal gangue feed (moisture <8%, loss on ignition ~15‑20%).

• Product whiteness and Al₂O₃ reactivity depend on feed composition and calcination profile.

• Auxiliary equipment (cooler, pre‑heater, dust collector, fan, burner) are supplied as part of the complete system but not listed in above dimensions.

• All parameters can be optimised through Hongke’s in‑house process simulation software before final design.

5. Why Choose Henan Hongke Machinery?

• 30+ Years of Expertise: Over three decades in designing, manufacturing, and commissioning rotary kilns for non‑metallic minerals and solid waste recycling.

• Full Turnkey Service: From lab‑scale testing, process flow‑sheet design, and equipment manufacturing to onsite installation, commissioning, and operator training.

• Global Track Record: Our rotary kilns have been successfully deployed in more than 40 countries across Southeast Asia, Central Asia, Africa, the Middle East, and South America.

• CE & ISO 9001:2015 Certified: All equipment meets international quality and safety standards.

• Lifetime Support: We provide spare parts, process optimisation, and remote diagnostic services throughout the kiln’s operational life.

6. Get a Customised Solution

Every coal gangue deposit differs in chemical composition, moisture, carbon content, and impurity profile. Henan Hongke Machinery offers free material testing and tailored engineering to ensure your rotary kiln achieves the highest yield, whiteness, and economic return.

Contact us today to discuss your capacity requirements and local fuel availability. Our technical team is ready to propose a bespoke solution – from a single kiln to a complete calcination plant.
