A Milestone in Western China's Lime Industry
Korla, the economic hub of the Bayingolin Mongol Autonomous Prefecture in Xinjiang, sits at the crossroads of Central Asia's growing industrial corridor. Rich in limestone reserves and fueled by expanding demand from steel, construction, and chemical industries, the region has become a strategic location for large-scale lime production. To meet this demand while adhering to increasingly strict environmental regulations, Henan Hongke Heavy Machinery Co., Ltd. (Henan Hongke Machinery) was commissioned to design, manufacture, and deliver a complete 3x60m environmentally friendly lime rotary kiln production line — a project that now stands as a benchmark for sustainable lime manufacturing in western China.
This article provides an in-depth look at the project's technical specifications, environmental features, engineering challenges, and the performance advantages that make this production line a model for the modern lime industry.
Why Korla, Xinjiang? Strategic Location for Lime Production
Xinjiang is home to some of China's most abundant high-grade limestone deposits. Korla, in particular, offers several distinct advantages for industrial lime projects:
- Abundant Raw Material Supply: The surrounding Tianshan mountain range provides vast reserves of high-purity limestone (CaCO₃ content exceeding 95%), ideal for producing high-activity quicklime.
- Growing Regional Demand: Xinjiang's expanding steel, aluminum, calcium carbide, and infrastructure sectors consume millions of tons of lime annually. Local production reduces transportation costs significantly compared to shipping lime from eastern China.
- Energy Resources: Proximity to natural gas pipelines and coal reserves ensures reliable and cost-effective fuel supply for rotary kiln operations.
- Policy Support: Government incentives for industrial development in western China encourage investment in modern, environmentally compliant production facilities.
Recognizing these factors, the project investor partnered with Henan Hongke Machinery to build a production line capable of meeting both current demand and future growth.
Technical Specifications of the 3x60m Lime Rotary Kiln

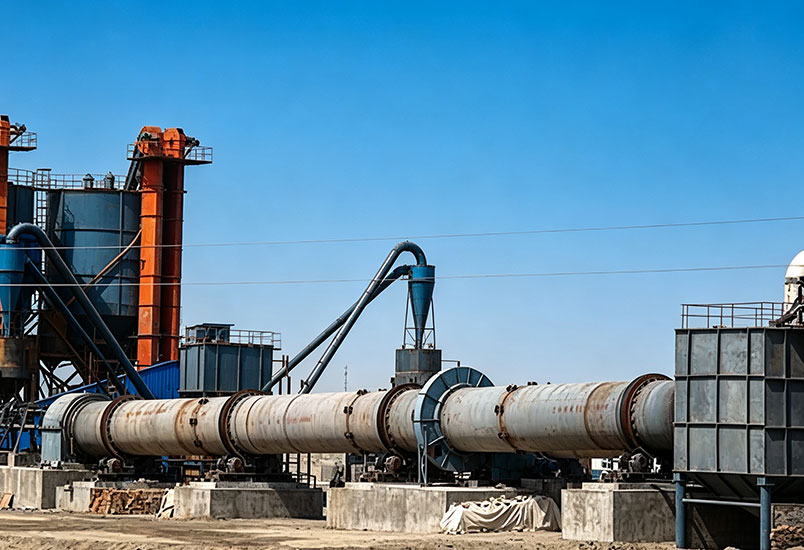

The core of this production line is a 3-meter diameter by 60-meter long rotary kiln — a proven configuration for medium-to-large-scale lime production. Henan Hongke Machinery engineered every aspect of the kiln system for maximum thermal efficiency, product quality, and operational reliability.
Key Technical Parameters
Preheater System
At the kiln inlet, Henan Hongke Machinery installed a vertical preheater designed to recover waste heat from the exhaust gases. Limestone entering the preheater is gradually heated to approximately 800°C–900°C by the counter-flowing hot gases before entering the rotary kiln. This achieves two critical objectives:
- 1.Energy Recovery: Preheating reduces the fuel required in the kiln itself, lowering overall heat consumption by 15%–20% compared to systems without preheaters.
- 2.Reduced Thermal Shock: Gradual heating prevents cracking of limestone particles, improving the final quicklime quality and reducing dust generation.
Cooler System
At the kiln outlet, a grate cooler rapidly cools the quicklime from approximately 1100°C to below 100°C. This serves multiple purposes:
- Product Quality: Rapid cooling preserves the high reactivity (activity degree) of the quicklime, which is essential for applications in steelmaking, flue gas desulfurization, and chemical processing.
- Energy Efficiency: The hot air recovered from the cooler is recycled back to the kiln as secondary or tertiary combustion air, further reducing fuel consumption.
- Worker Safety: Cooled product is safe for handling and storage without special heat-resistant equipment.
Environmental Design: Meeting and Exceeding Emission Standards
Environmental compliance was a non-negotiable requirement for this project. Korla, like much of Xinjiang, operates under China's increasingly rigorous environmental protection framework. Henan Hongke Machinery integrated a comprehensive environmental management system into the production line design.
Multi-Stage Dust Collection System
The production line employs a three-stage dust removal system:
- 1.
Cyclone Pre-Dust Collector: At the kiln outlet, a high-efficiency cyclone separator captures coarse particulate matter, removing approximately 80%–85% of dust before the gas stream reaches downstream equipment.
- 2.
Bag Filter Dust Collector: The primary dust removal unit uses high-temperature resistant PTFE membrane filter bags, achieving a dust removal efficiency of ≥ 99.5%. Emissions are consistently maintained below 10 mg/Nm³, well within China's ultra-low emission standards.
- 3.
Wet Scrubber (Desulfurization): For coal-fired kilns, a wet limestone-gypsum desulfurization tower is integrated into the exhaust gas treatment system, achieving SO₂ removal rates exceeding 95%. This ensures compliance with the stringent SO₂ emission limits mandated in Xinjiang's environmental regulations.
Noise and Waste Management
- Noise Control: All major rotating equipment (kiln, fans, crushers) is equipped with vibration-dampening mounts and acoustic enclosures, keeping boundary noise levels below 65 dB(A).
- Solid Waste Recycling: Off-spec quicklime and kiln dust are collected and repurposed for agricultural soil amendment or construction materials, achieving near-zero solid waste discharge.
Engineering Challenges and Solutions
Every industrial project presents unique challenges. The Korla project was no exception. Here are three significant engineering challenges Henan Hongke Machinery addressed:
1. Extreme Climate Conditions
Korla experiences a continental arid climate with temperature swings from -25°C in winter to +42°C in summer. This posed risks of thermal stress on the kiln shell and refractory lining, as well as challenges for outdoor equipment operation.
Solution: Henan Hongke Machinery specified Q345R boiler-grade steel for the kiln shell, which maintains structural integrity across a wide temperature range. The refractory lining design incorporated expansion joints at calculated intervals to accommodate thermal expansion and contraction. All outdoor electrical panels and control systems were housed in climate-controlled enclosures with heating elements for winter operation.
2. Long-Distance Equipment Delivery
Transporting a 60-meter kiln shell and associated heavy equipment from Henan Province to Korla — a distance of over 3,000 kilometers — required meticulous logistics planning.
Solution: The kiln shell was manufactured in segments of transportable length, with precision-machined flanges for on-site assembly. Henan Hongke Machinery dispatched an experienced installation supervision team to Korla to oversee the on-site welding, alignment, and commissioning process, ensuring each segment was assembled to exact specifications.
3. Fuel Flexibility
The project investor required the kiln to operate on multiple fuel types — natural gas when available, and coal gas or pulverized coal as alternatives — to ensure uninterrupted production regardless of fuel supply fluctuations.
Solution: Henan Hongke Machinery designed a multi-fuel burner system with automated fuel switching capability. The burner control system adjusts air-fuel ratios in real time based on the active fuel type, maintaining optimal combustion efficiency regardless of the fuel source. This flexibility ensures continuous operation and stable product quality.
Project Results and Performance Metrics
Since commissioning, the 3x60m lime rotary kiln production line in Korla has consistently delivered outstanding performance:
These results demonstrate that the production line not only meets but exceeds its original design targets in terms of output, quality, energy efficiency, and environmental compliance.
The Henan Hongke Machinery Advantage
What sets Henan Hongke Machinery apart in the lime rotary kiln market? The answer lies in a vertically integrated approach to project delivery:
- In-House Design and Engineering: All kiln systems are designed by Henan Hongke Machinery's own engineering team, using advanced thermal modeling and structural analysis software to optimize every component.
- Precision Manufacturing: Kiln shells, girth gears, support rollers, and refractory systems are manufactured in Henan Hongke's own production facilities, ensuring strict quality control from raw material to finished product.
- Turnkey Project Capability: From feasibility study and engineering design to manufacturing, shipping, installation supervision, and commissioning, Henan Hongke Machinery provides end-to-end project delivery.
- After-Sales Support: Henan Hongke Machinery offers ongoing technical support, spare parts supply, and performance optimization consulting throughout the life of the equipment.
- Proven Track Record: With lime rotary kiln installations across China and in international markets including Southeast Asia, Central Asia, Africa, and the Middle East, Henan Hongke Machinery brings global experience to every project.
Applications of Quicklime Produced by Rotary Kilns
The high-quality quicklime produced by this 3x60m rotary kiln serves a wide range of industrial applications:
- Steelmaking: Used as a flux in basic oxygen furnaces (BOF) and electric arc furnaces (EAF) to remove impurities from molten steel.
- Environmental Protection: Applied in flue gas desulfurization (FGD) systems in power plants and industrial facilities.
- Chemical Industry: Essential raw material for producing calcium carbide, soda ash, and precipitated calcium carbonate (PCC).
- Construction: Used in soil stabilization, mortar production, and autoclaved aerated concrete (AAC) blocks.
- Water Treatment: Quicklime is widely used for pH adjustment and sludge dewatering in municipal and industrial water treatment plants.
The consistent high reactivity and low impurity content of rotary kiln quicklime make it the preferred product for these demanding applications.
Conclusion: Setting the Standard for Sustainable Lime Production
The 3x60m environmentally friendly lime rotary kiln production line in Korla, Xinjiang represents a successful convergence of advanced engineering, environmental responsibility, and economic viability. By partnering with Henan Hongke Machinery, the project investor gained a production facility that delivers high output, premium product quality, low energy consumption, and full environmental compliance — all backed by reliable after-sales support and proven equipment durability.
As China continues to promote green industrial development in its western regions, this project serves as a compelling example of how modern rotary kiln technology can drive both economic growth and environmental stewardship.
