Overview of Ceramsite Production Line
A ceramsite production line is an integrated system designed to process suitable raw materials into lightweight ceramsite aggregates through material preparation, mixing, granulation, thermal treatment, cooling, and screening. The complete production process is configured according to the raw material properties, required product specifications, production capacity, and fuel conditions.
Henan Hongke Heavy Machinery Co., Ltd. provides equipment solutions for ceramsite production projects, including rotary kiln systems and related material handling,
feeding, cooling, screening, and conveying equipment. The production line configuration can be customized to meet specific process requirements and site conditions.
From individual equipment selection to complete production line configuration, the key objective is to coordinate each processing stage and establish a practical production system for manufacturing lightweight aggregates.

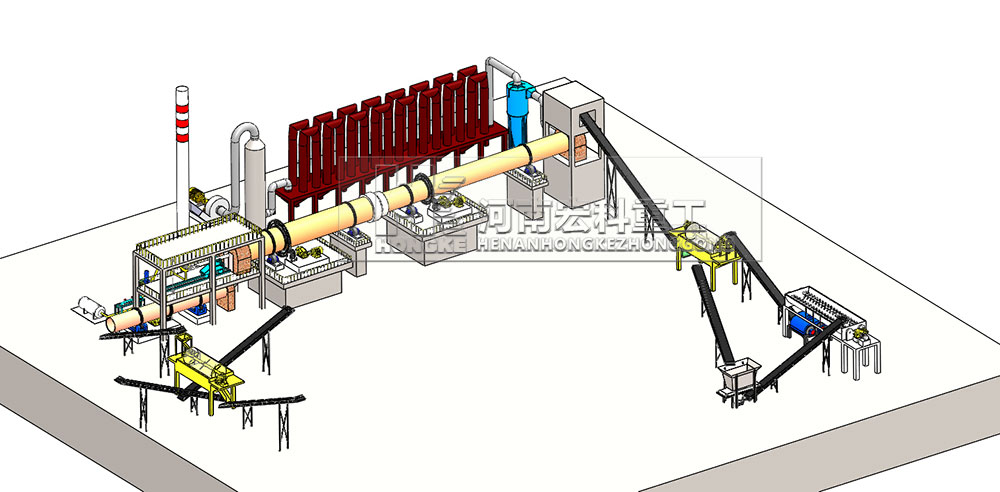

Ceramsite Production Process
The production process varies according to the raw material and the required properties of the finished ceramsite. A typical process may include the following stages:
1. Raw Material Preparation
Suitable raw materials are inspected and prepared according to their composition, particle size, moisture content, and processing requirements. Crushing, screening, or other preparation equipment may be selected as needed.
2. Mixing and Material Conditioning
The prepared materials are proportioned and mixed according to the production formula. Water or other approved additives may be introduced when required to achieve suitable material consistency and processing performance.
3. Granulation and Shaping
The conditioned material is processed into granules of the required size and shape. The granulation method depends on the raw material characteristics and the intended ceramsite product.
4. Drying and Preheating
Where required by the process design, the granules undergo drying and preheating before entering the rotary kiln. This stage helps prepare the material for the subsequent firing process.
5. Rotary Kiln Firing
The prepared granules enter the rotary kiln for thermal treatment under process-specific operating conditions. Kiln temperature, residence time, rotation speed, and other operating parameters are determined according to the raw material characteristics and target product properties.
6. Cooling
After firing, the hot ceramsite is transferred to a suitable cooling system. Cooling equipment is selected according to the production process, material temperature, handling requirements, and plant layout.
7. Screening and Finished Product Handling
The cooled material can be screened into different particle-size ranges according to product requirements. Conveying and storage equipment can then transfer the finished ceramsite to designated storage or packaging areas.
Main Equipment of Ceramsite Production Line
The equipment configuration depends on the selected production process, raw material properties, target output, and project conditions. A complete line may include the following equipment:
- Crushing and Screening Equipment: Prepares raw materials to the required particle size.
- Feeding and Batching System: Controls the supply and proportioning of materials.
- Mixing Equipment: Blends raw materials and additives when required.
- Granulation Equipment: Forms raw materials into granules suitable for subsequent processing.
- Drying or Preheating Equipment: Prepares granules for firing when required by the process.
- Ceramsite Rotary Kiln: Provides the thermal treatment required for ceramsite production.
- Cooling System: Cools fired ceramsite for downstream handling.
- Screening System: Separates finished products according to particle size.
- Conveying and Storage Equipment: Transfers materials between processing stages and handles finished products.
- Dust Collection and Control System: Supports dust management and process monitoring according to project requirements.
Not every project requires all the equipment listed above. The final configuration should be determined through raw material evaluation and process design.
Key Features of Ceramsite Production Line
Integrated Process Configuration
Equipment can be arranged to connect material preparation, granulation, firing, cooling, screening, and finished product handling into a coordinated production process.
Customized Equipment Selection
The production line can be configured according to the raw material type, target product size, required production capacity, fuel availability, and site conditions.
Rotary Kiln Firing System
The rotary kiln is a key component of the thermal treatment stage. Its specifications and operating conditions should be selected according to the material's firing characteristics and the intended product performance.
Flexible Product Handling
Suitable screening, conveying, and storage equipment can be incorporated to accommodate different finished product size ranges and plant layouts.
Dust Collection Options
Dust collection equipment can be selected for relevant material handling and thermal processing points according to the process design and applicable environmental requirements.
Project-Based Production Line Design
Equipment capacity, layout, process connections, and auxiliary systems should be evaluated together to help ensure compatibility across the production line.
Technical Specifications of Ceramsite Production Line
The following specifications are determined according to project requirements. Final values should be confirmed through technical evaluation and equipment selection.
| Product specifications(m) | Kiln dimensions | Capacity(t/d) | Rotation speed(r/min) | Motor power(kw) | Total weight(t) | Note |
| Diameter(m) | Length(m) | Obliquity(%) |
| Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 | Kiln with shaft cyclone preheater |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 | ---- |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 204 | 0.48-1.45 | 55 | 196.29 | ---- |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 | ---- |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 400 | 0.437-2.18 | 55 | 201.58 | Outside disassemble kiln |
| Φ3.0×45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 210.94 | ---- |
| Φ3.0×48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 | Outside disassemble kiln |
| Φ3.0×60 | 3 | 60 | 3.5 | 300 | 0.3-2 | 100 | 310 | Alumyte-alumina forge kiln |
| Φ3.2×50 | 3.2 | 50 | 4 | 1000 | 0.6-3 | 125 | 278 | Outside disassemble kiln |
| Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | 283 | Kiln with preheater precalcine |
| Φ3.5×54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | 363 | Kiln with preheater precalcine |
| Φ3.6×70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | 419 | Generating kiln for using ofterheat |
| Φ4.0×56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 | 456 | Kiln with preheater precalcine |
| Φ4.0×60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 | 510 | Kiln with preheater precalcine |
| Φ4.2×60 | 4.2 | 60 | 4 | 2750 | 0.4-3.98 | 375 | 633 | Kiln with preheater precalcine |
| Φ4.3×60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 | 583 | Kiln with preheater precalcine |
| Φ4.5×66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | 710.4 | Kiln with preheater precalcine |
| Φ4.7×74 | 4.7 | 74 | 4 | 4500 | 0.35-4 | 630 | 849 | Kiln with preheater precalcine |
| Φ4.8×74 | 4.8 | 74 | 4 | 5000 | 0.396-3.96 | 630 | 899 | Kiln with preheater precalcine |
| Φ5.0×74 | 5 | 74 | 4 | 6000 | 0.35-4 | 710 | 944 | Kiln with preheater precalcine |
| Φ5.6×87 | 5.6 | 87 | 4 | 8000 | Max4.23 | 800 | 1265 | Kiln with preheater precalcine |
| Φ6.0×95 | 6 | 95 | 4 | 10000 | Max5 | 950×2 | 1659 | Kiln with preheater precalcine |
Applications of Ceramsite
Ceramsite is a lightweight aggregate used in various construction and building material applications. Its suitability depends on the raw material, firing process, and tested properties of the finished product.
- Lightweight Concrete: Used as lightweight aggregate where the product meets the required technical specifications.
- Building Materials: Applied in selected lightweight construction products.
- Construction Aggregates: Used in applications requiring specified aggregate properties and particle sizes.
- Other Industrial Applications: Potential applications depend on the ceramsite composition and verified product performance.
How to Select a Suitable Ceramsite Production Line
Choosing a suitable ceramsite production line requires an evaluation of the raw material, product requirements, production target, and operating conditions. The following information helps determine the appropriate equipment configuration:
- Raw Material Information: Material type, chemical composition, particle size, moisture content, and available test results.
- Required Production Capacity: Target output and the basis used to measure capacity.
- Finished Product Requirements: Particle size, bulk density, strength, water absorption, and other relevant specifications.
- Fuel and Energy Conditions: Available fuel type, energy supply, and operating cost considerations.
- Site Conditions: Available space, plant layout, utilities, and environmental requirements.
- Automation Requirements: Desired level of process monitoring and control.
Providing these details allows the production line configuration to be evaluated more accurately. Product quality and production performance should be confirmed through appropriate raw material testing, process design, and commissioning verification.
About Henan Hongke Heavy Machinery Co., Ltd.
Henan Hongke Heavy Machinery Co., Ltd. provides equipment and production line solutions for industrial processing applications. Its main product range includes rotary kilns, rotary dryers, ball mills, crushers, and related production line equipment.
For ceramsite production projects, equipment selection and system configuration should be based on the customer's raw materials, target product specifications, production requirements, and site conditions. Henan Hongke Machinery can evaluate project information to support equipment selection and production line planning.
Frequently Asked Questions
What is a ceramsite production line?
A ceramsite production line is a coordinated system of equipment used to prepare raw materials, form granules, carry out thermal treatment, cool the fired material, and screen the finished lightweight aggregates.
What raw materials can be used to produce ceramsite?
Potential raw materials include suitable clay, shale, and certain industrial by-products. Suitability depends on the material composition, expansion or firing characteristics, environmental requirements, and the properties required in the finished product. Raw material testing is recommended before selecting the production process.
What equipment is required for a ceramsite production line?
A typical configuration may include crushing and screening equipment, feeding and batching systems, mixing and granulation equipment, a rotary kiln, a cooling system, finished product screening, conveying equipment, and dust collection. The actual equipment list depends on the selected process.
What is the difference between a ceramsite rotary kiln and a ceramsite production line?
A ceramsite rotary kiln is the main thermal processing machine used during firing. A ceramsite production line includes the kiln and the other equipment required for material preparation, granulation, cooling, screening, conveying, and related operations.
Can the ceramsite production line be customized?
Equipment selection and layout can be evaluated according to raw material properties, production capacity, finished product specifications, fuel conditions, and site requirements. The final configuration is subject to technical assessment.
How can I obtain a suitable production line proposal?
Please provide your raw material information, target production capacity, finished product specifications, available fuel, project location, and any existing test reports. These details help establish the basis for equipment selection and a project-specific proposal.
Request a Ceramsite Production Line Proposal
Planning a ceramsite production project? Contact Henan Hongke Heavy Machinery Co., Ltd. with your raw material information, target capacity, product specifications, and project requirements. Our team can evaluate the information and help identify a suitable equipment configuration for your project.
