Henan Hongke Heavy Machinery Co., Ltd. is pleased to report on the successful commissioning of a brand-new Φ2.5×60m calcium fluoride (fluorite) rotary kiln at a customer site in Haining, Zhejiang Province, China. This is a completely new production line—not a refurbishment, not an upgrade of old equipment—designed from the ground up for high-purity fluorite processing.
Project Background: Meeting the Demand for High-Quality Calcium Fluoride
Calcium fluoride (CaF₂), commonly known as fluorspar, is a critical raw material for the metallurgical, chemical, and optical industries. It is widely used as a flux in steelmaking, in the production of hydrofluoric acid, and in specialty glass and ceramics manufacturing . To obtain high-quality synthetic fluorspar, calcium fluoride slurry must be calcined in a rotary kiln at temperatures of approximately 900–1100K (627–827°C) . The calcination process significantly influences grain size and compression strength of the final product.
Haining, located in the Yangtze River Delta region, has emerged as a hub for advanced materials manufacturing. Our customer, a chemical materials producer, identified the need to expand their calcium fluoride processing capacity to serve growing demand from steel mills and chemical plants across eastern China.
The Challenge: New Facility, New Equipment
Before choosing Henan Hongke Machinery, the customer was operating a smaller, outdated production line that could no longer meet their quality or output targets. They required:
Brand-new equipment – no second-hand machines, no retrofits
Consistent product quality – stable grain size and compression strength
High throughput – to meet growing market demand
Energy efficiency – lower operating costs
Environmental compliance – strict dust emission standards
The customer made it clear from the start: they wanted a purpose-built, modern rotary kiln system designed specifically for calcium fluoride calcination—not a repurposed cement or lime kiln.
Our Solution: Φ2.5×60m Rotary Kiln System

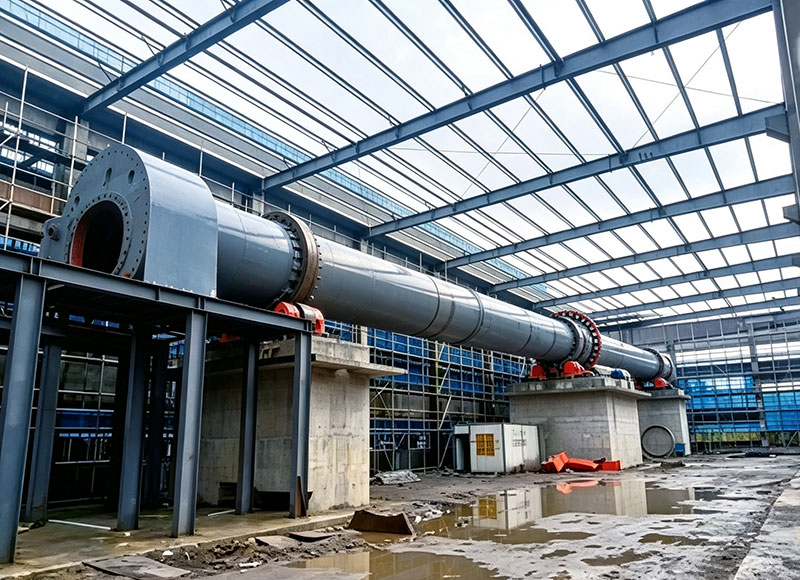

Henan Hongke Heavy Machinery engineered and manufactured a complete, brand-new calcination line centered around a Φ2.5×60m rotary kiln—a configuration well-suited for calcium fluoride processing at medium-to-large capacity.
Key Equipment Specifications
| Parameter | Value |
|---|---|
| Kiln diameter | 2.5 meters |
| Kiln length | 60 meters |
| Processing capacity | Custom-engineered to customer requirements |
| Operating temperature | 627–827°C (900–1100K) |
| Kiln inclination | 3.5–4% |
| Rotation speed | Variable frequency drive |
| Drive system | Heavy-duty gear drive with auxiliary motor |
| Sealing system | Labyrinth seals with air purge at both ends |
Complete System Configuration
1. Feed System
The system includes a variable-speed screw feeder designed to handle calcium fluoride slurry or powder with consistent feed rates—critical for maintaining uniform calcination conditions.
2. Φ2.5×60m Rotary Kiln
The core calcination unit features a high-quality carbon steel shell with high-alumina refractory lining. The 60-meter length provides sufficient residence time for complete thermal treatment at 900–1100K, ensuring optimal grain size and compression strength . The temperature profile is precisely controlled across heating zones to accommodate the specific requirements of calcium fluoride calcination.
3. Burner System
The multi-fuel burner can operate on natural gas or pulverized coal, adapting to local fuel availability while maintaining stable temperature control.
4. Dust Collection System
A multi-stage dust collection system—cyclone pre-separator followed by bag filter—captures fine particles and ensures emissions meet environmental standards.
5. Automation & Control
PLC-based centralized control monitors temperature profiles, feed rates, kiln rotation speed, and emissions in real time. Full data logging supports quality documentation and process optimization.
Key Advantages: Brand-New, Purpose-Built
| Feature | Benefit |
|---|---|
| New design | Built to modern standards—no hidden wear, full service life ahead |
| Precise temperature control | Consistent product quality, optimized grain size |
| Continuous operation | 24/7 production, no batch-to-batch variability |
| Advanced seals | Minimal heat loss, lower fuel consumption |
| Automated controls | Reduced labor requirements, consistent output |
About Henan Hongke Heavy Machinery Co., Ltd.
Henan Hongke Heavy Machinery Co., Ltd. (Henan Hongke Machinery) has been manufacturing industrial processing equipment since 2006. Our product portfolio includes:
Rotary Kilns – for calcium fluoride, lime, dolomite, metallurgy, and mineral calcination
Rotary Dryers – for sludge, biomass, and industrial materials
Ball Mills – for ore, slag, cement, and chemical grinding
Crushers – for primary and secondary size reduction
We provide custom engineering, full manufacturing, installation guidance, and after-sales support for customers worldwide.
Summary
The Φ2.5×60m calcium fluoride rotary kiln project in Haining, Zhejiang, demonstrates Henan Hongke Machinery's ability to deliver brand-new, purpose-built calcination solutions for the chemical and metallurgical industries. By integrating precise temperature control, continuous operation, and automated monitoring, the system produces consistent, high-quality calcium fluoride product with optimized process efficiency.
For calcium fluoride processing, mineral calcination, or other thermal treatment applications, contact Henan Hongke Heavy Machinery Co., Ltd.
