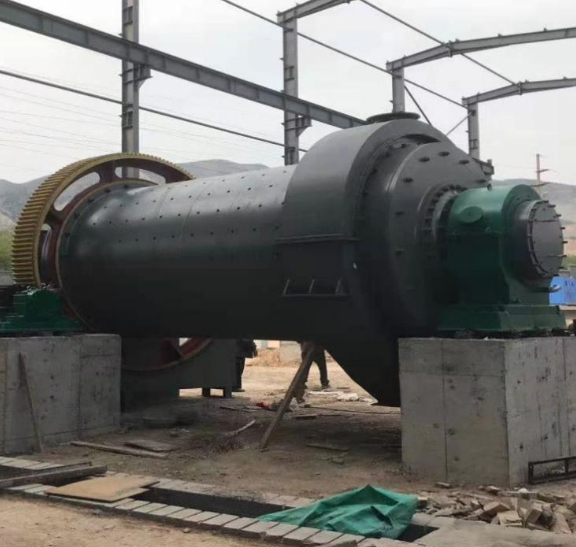

Rod Mill

Rod mills are professional grinding equipment widely applied in mineral processing flows. They are capable of finely grinding ore materials of various hardness to meet subsequent processing requirements. In recent years, rod mills have also been extensively used in the manufactured sand industry for construction sand production and other aggregate processing scenarios.

Driven by a motor through gear transmission or a low-speed synchronous motor via peripheral gears, the rod mill cylinder rotates steadily. Steel rods serving as grinding media are installed inside the cylinder. With the rotation of the cylinder, the steel rods generate centrifugal force and friction, lifting to a certain height before falling in a projectile motion. After raw materials enter the cylinder, they are continuously impacted, crushed and ground by the grinding media to achieve fine crushing and pulverization effects. A unique advantage of the rod mill is that the discharge particle size can be easily adjusted through simple parameter modifications, a feature unavailable in most other grinding equipment.

Product Advantages

Uniform Discharge & High Output: Adopting controllable feeding and discharging technology, and equipped with customized grinding media according to customers’ actual operation demands, our rod mill delivers a higher finished product rate and more uniform discharge particle size during material grinding and processing.

Time & Labor Saving, Low Investment Cost: Compared with traditional grinding equipment, this rod mill reduces power consumption by more than 40% during operation, effectively cutting down overall production investment and operational costs for enterprises.

Excellent Energy Saving & Environmental Protection: Supported by advanced manufacturing and operation technologies, the equipment features low energy consumption, realizing remarkable energy-saving and eco-friendly performance.

Low Operating Cost: Equipped with mature and advanced core technologies, the rod mill runs stably with low failure rate, greatly reducing daily operation and maintenance costs.

Technical Parameters

Model Specification	Simplified Model	Cylinder Speed (r/min)	Steel Rod Loading (t)	Feeding Size (mm)	Discharging Size (mm)	Capacity (t/h)	Motor Power (kw)
Ф900×1800	918	36-38	1.5	≤20	0.075-0.89	0.65-2	18.5
Ф900×3000	930	36	2.7	≤20	0.075-0.89	1.1-3.5	22
Ф1200×2400	1224	36	3	≤25	0.075-0.4	1.5-4.8	30
Ф1200×3000	1230	36	3.5	≤25	0.074-0.4	1.6-5	37
Ф1200×4500	1245	32.4	5	≤25	0.074-0.4	1.6-5.8	55
Ф1500×3000	1530	29.7	7.5	≤25	0.074-0.4	2-5	75
Ф1500×4500	1545	27	11	≤25	0.074-0.4	3-6	110
Ф1500×5700	1557	28	12	≤25	0.074-0.4	3.5-6	130
Ф1800×3000	1830	25.4	11	≤25	0.074-0.4	4-10	130
Ф1830×4500	1845	25.4	15	≤25	0.074-0.4	4.5-12	155
Ф1830×6400	1864	24.1	21	≤25	0.074-0.4	6.5-15	210
Ф1830×7000	1870	24.1	23	≤25	0.074-0.4	7.5-17	245
Ф2100×3000	2130	23.7	15	≤25	0.074-0.4	6.5-36	155
Ф2100×4500	2145	23.7	24	≤25	0.074-0.4	8-43	245
Ф2100×7000	2170	23.7	26	≤25	0.074-0.4	8-48	280
Ф2200×4500	2245	21.5	35	≤25	0.074-0.4	9-45	280
Ф2200×6500	2265	21.7	35	≤25	0.074-0.4	14-26	280
Ф2200×7000	2270	21.7	35	≤25	0.074-0.4	15-28	380
Ф2200×7500	2275	21.7	35	≤25	0.074-0.4	15-30	380
Ф2400×3000	2430	21	23	≤25	0.074-0.4	7-50	245
Ф2400×4500	2445	21	30	≤25	0.074-0.4	8.5-60	320
Ф2700×4000	2740	20.7	40	≤25	0.074-0.4	12-80	380
Ф2700×4500	2745	20.7	48	≤25	0.074-0.4	12-90	480
Ф3200×4500	3245	18	65	≤25	0.074-0.4	Subject to process conditions	800
Ф3600×4500	3645	17	90	≤25	0.074-0.4	Subject to process conditions	850
Ф3600×6000	3660	17	110	≤25	0.074-0.4	Subject to process conditions	1250
Ф3600×8500	3685	18	131	≤25	0.074-0.4	45.8-256	1800
Ф4000×5000	4050	16.9	121	≤25	0.074-0.4	45-208	1500
Ф4000×6000	4060	16.9	146	≤25	0.074-0.4	65-248	1600
Ф4000×6700	4067	16.9	149	≤25	0.074-0.4	45-252	1800
Ф4500×6400	4564	15.6	172	≤25	0.074-0.4	54-306	2000
Ф5030×6400	5064	14.4	216	≤25	0.074-0.4	68-386	2500
Ф5030×8300	5083	14.4	226	≤25	0.074-0.4	88-500	3300
Ф5500×8500	5585	13.8	338	≤25	0.074-0.4	108-615	4500
